Associated Technical Group / Surface-finishing systems

Finish starts
before the paint.

ATG engineers the connected route—from pretreatment and CED to application, curing, air handling and material movement.

Discuss your requirement View the connected route

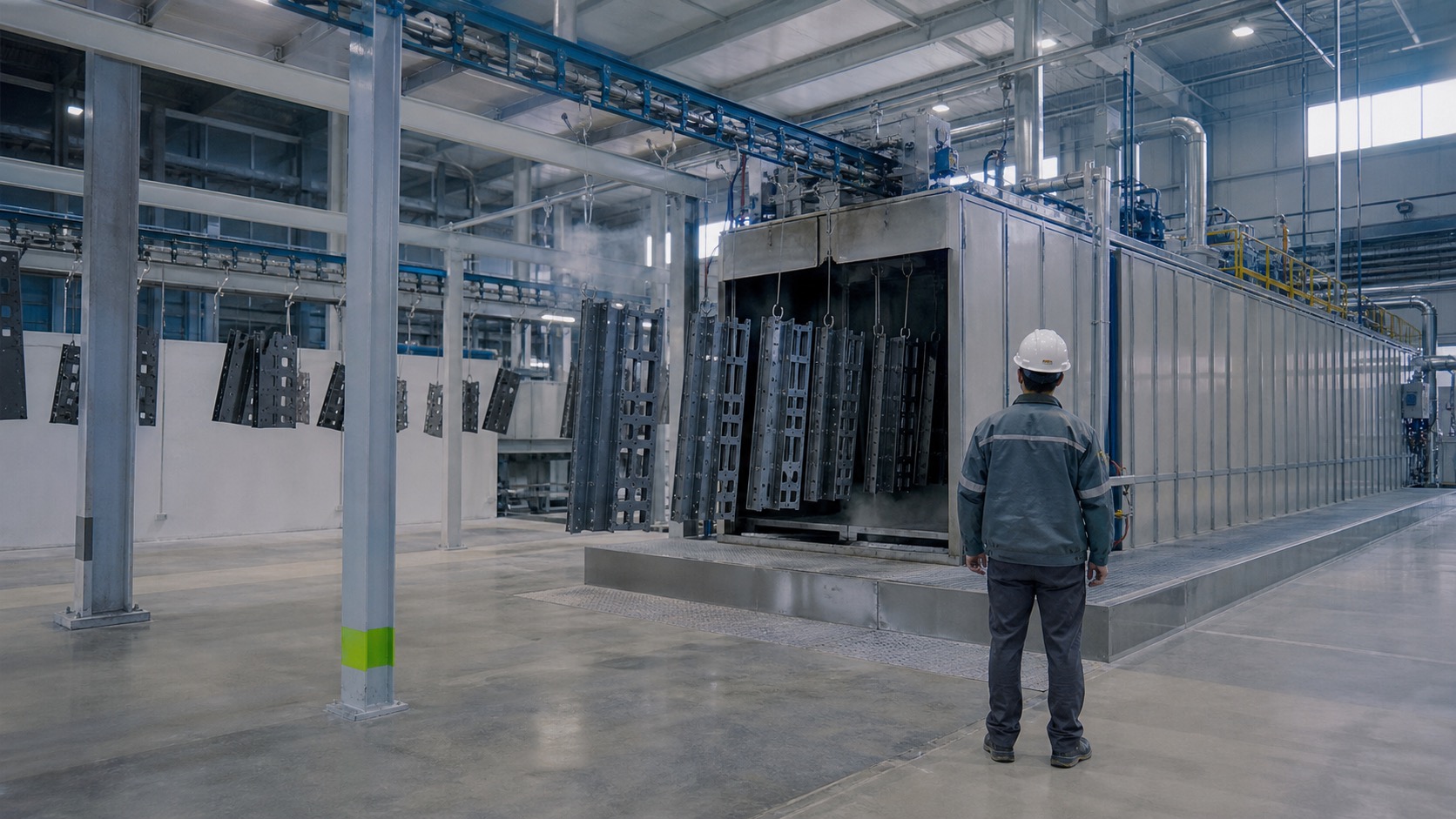

Illustrative industrial surface-finishing facility with a conveyor line and process equipment. — 01 Process view / Facility integration

One part moves through many conditions. ATG plans the system around all of them.

01 / Component02 / Surface03 / Flow04 / Finish

The line is the product.

Each equipment choice changes the conditions downstream. ATG brings the route into view before a facility takes shape.

01Pre-treatmentPrepare the surface for consistent downstream performance.
02CoatCoordinate CED, liquid or powder application with the workpiece.
03CurePlan thermal zones and cooling around process timing.
04MoveKeep components, handling and controls connected.

Systems, connected by design.

Explore the core systems ATG brings together across an industrial finishing route.

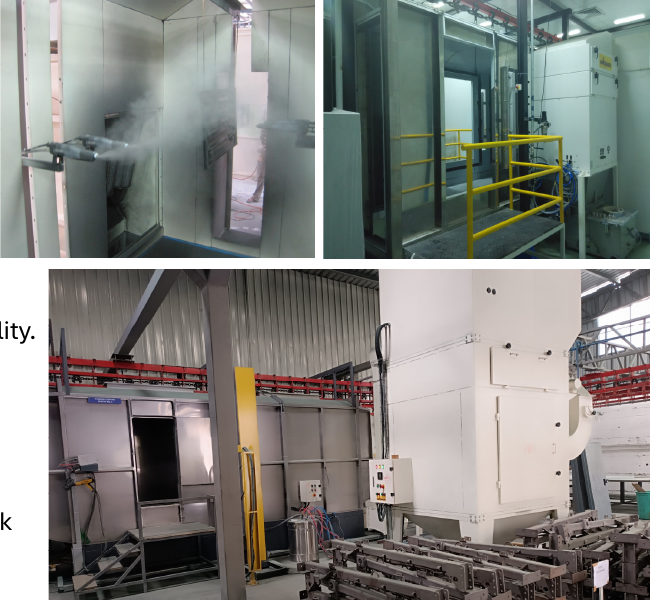

Pretreatment built around the part and the process Cathodic electro-deposition for a controlled foundation coat Liquid paint areas designed for the workpiece and workflow Powder coating lines with recovery and flow in view Air supply and cooling that support the finishing environment Curing and baking choices shaped by production reality Material handling that keeps the process moving Engineering and automation for coordinated facilities

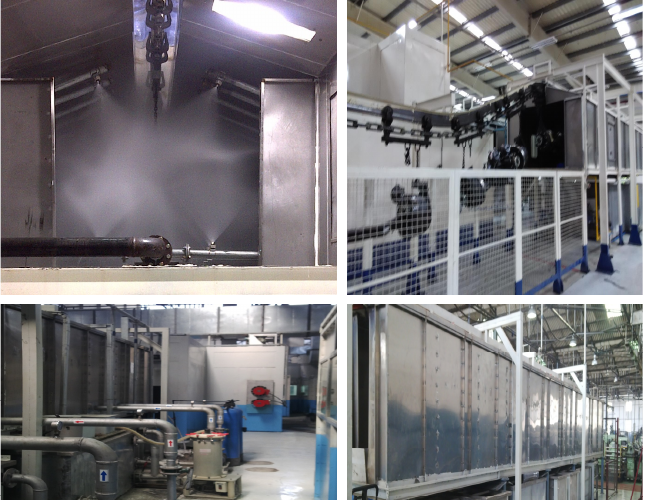

ATG process photography showing a spray pretreatment tunnel and associated conveyor equipment. — ATG process photography / Pretreatment

Start with the part. Design the route around it.

Component geometry, required finish, throughput, available footprint, utilities and material flow shape a finishing line. This is where the useful conversation begins.

Start a technical conversation

Scope that follows the workpiece.

ATG’s presentation covers surface-finishing lines, booths and ovens, air-supply and cooling zones, material handling, engineering design and process automation.

See how ATG approaches a project
